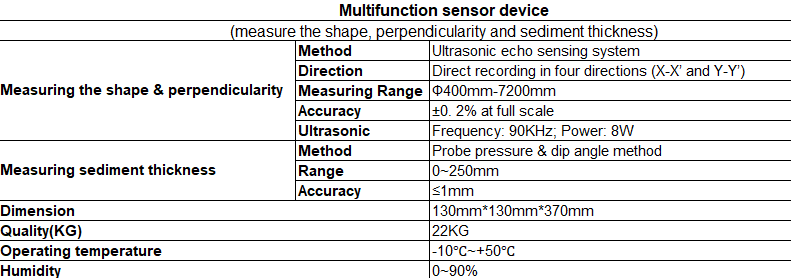

Detection for width and drilling depth of diaphragm wall, bored piles; Sediment thickness.
The Ultrasonic Drilling Monitor provides a visual representation of a drilled foundation excavation before pouring concrete in either wet or dry conditions.
Besides, acquisition calculations of a drilled excavation to determine shaft verticality, radius, and volume, with 360 degree, 2D and 3D profile views. The Data acquisition at a rate of approximately one scan per second with eight channels scanned simultaneously.

Model: TS-K100DC(B).

Diameter Range: 400mm-8000mm.

 Warranty: 12 months
